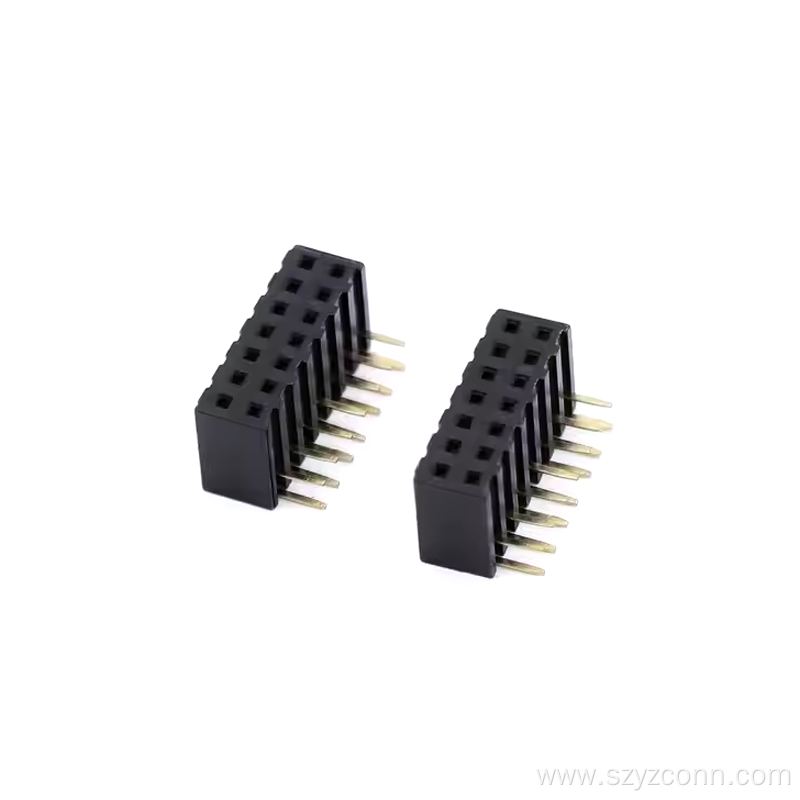

2.0mm Pitch Female Header Connector 14P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 2-core 14P

Contact Now

Product Description

Product Attributes

Model No.: 0530102

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Tube

Supply Type: Original Manufacturer

Place Of Origin: China

Pin Or Socket: Socket

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Tube&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

2.0mm pitch female header Connector 14P

yztech’s meticulously developed 2.0mm Pitch female header connector 14P is specifically designed to solve connection challenges in electronic devices with limited space and complex wiring. As a featured product in the 2.0mm pitch Female Header series,the unique right-angle structure combined with a standard 2.0mm pitch of 2.0mm Female Header 14p perfectly meets the three-dimensional layout requirements of PCB boards, standing out in the 2mm header connector category for its flexible installation and stable electrical performance.

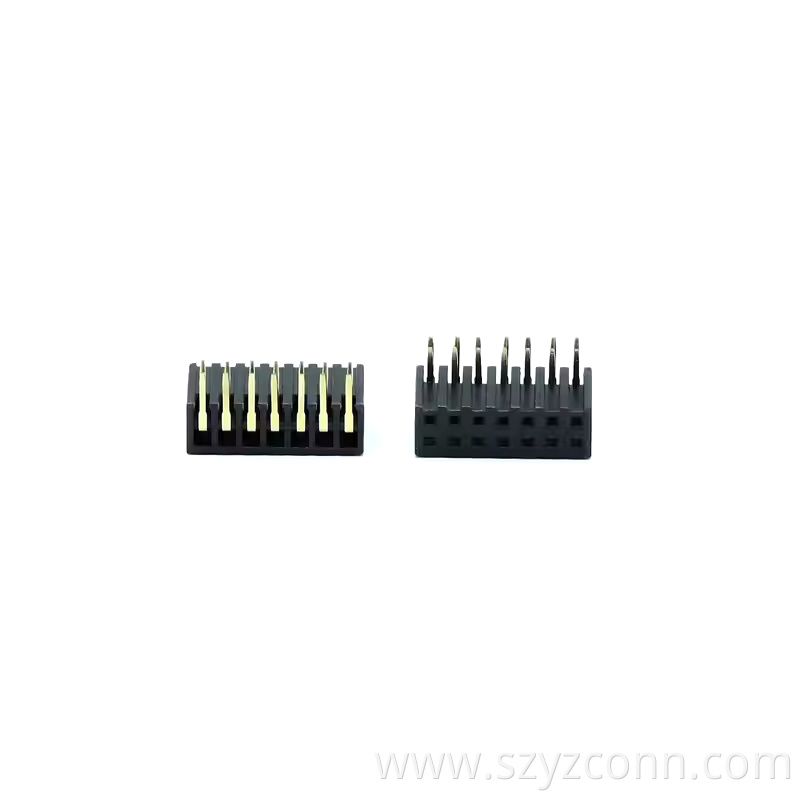

2.0mm Pitch Female Header Dual Row Right Angle H7.2mm 22P-240P (1)

This 2.0mm female header connector 14p features high-purity phosphor bronze terminals (anti-oxidation hard gold-plated) paired with high-temperature-resistant LCP (UL94V - 0) insulation materials, stably carrying 3.5A current in harsh environments ranging from -40°C to +125°C, with a contact resistance as low as 13mΩ. The right-angle design of 2.0mm female to female header 14p enables 90° vertical transitions, not only forming a secure connection with 2 pin header female but also skillfully avoiding Other components to optimize PCB board space utilization. It can also be used in combination with straight headers like 2mm pitch Pin Header Plastic Straight H9.35mm to meet diverse wiring needs. Customization services are available to adjust parameters such as pin counts and spacing according to project requirements.

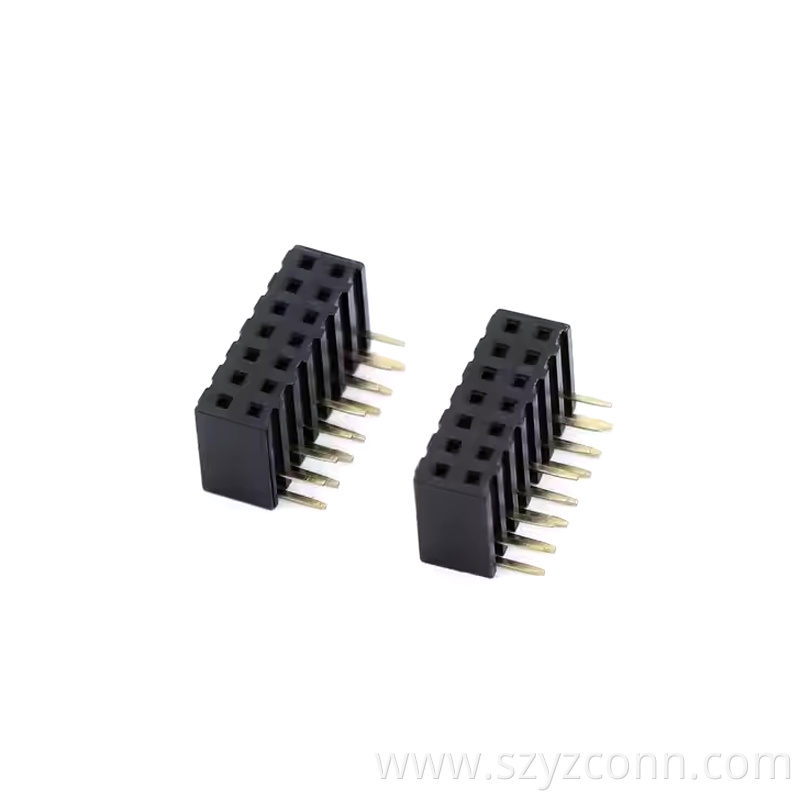

2.0mm Pitch Female Header Dual Row Right Angle H7.2mm 22P-240P (4)

Widely used in devices with strict space layout requirements, such as smart routers and embedded systems. Certified by ISO9001, ISO14001, and RoHS-compliant, anti-static carrier tape packaging provides personalized services, offering efficient and reliable solutions for complex electronic connection scenarios.
