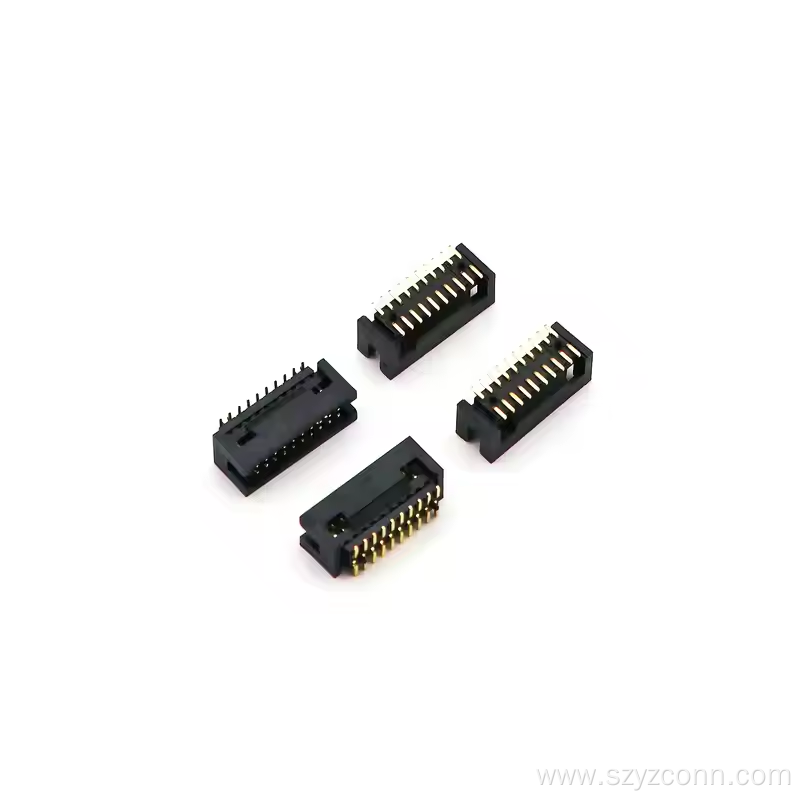

1.27mm Pitch Box Header Connector SMT 20P

1.27mm Pitch Box Header Connector SMT 20P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 2-core 20P

Contact Now

Product Description

Product Attributes

Model No.: 052955

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Contact Connector

Package: Other

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.27mm Pitch Box Header Connector SMT 20P

yztech’s meticulously crafted 1.27mm Pitch Box header connector SMT 20P is specially designed for electronic devices with strict requirements for spatial layout and signal transmission. As a featured product in the smt box header series, the standard 1.27mm pitch and precise 5.7mm height design of these 1.27mm Box Header Connectors 20p perfectly meet the three-dimensional wiring needs of PCB boards, standing out in the 1.27 mm box header category for its excellent space adaptability and stable performance.

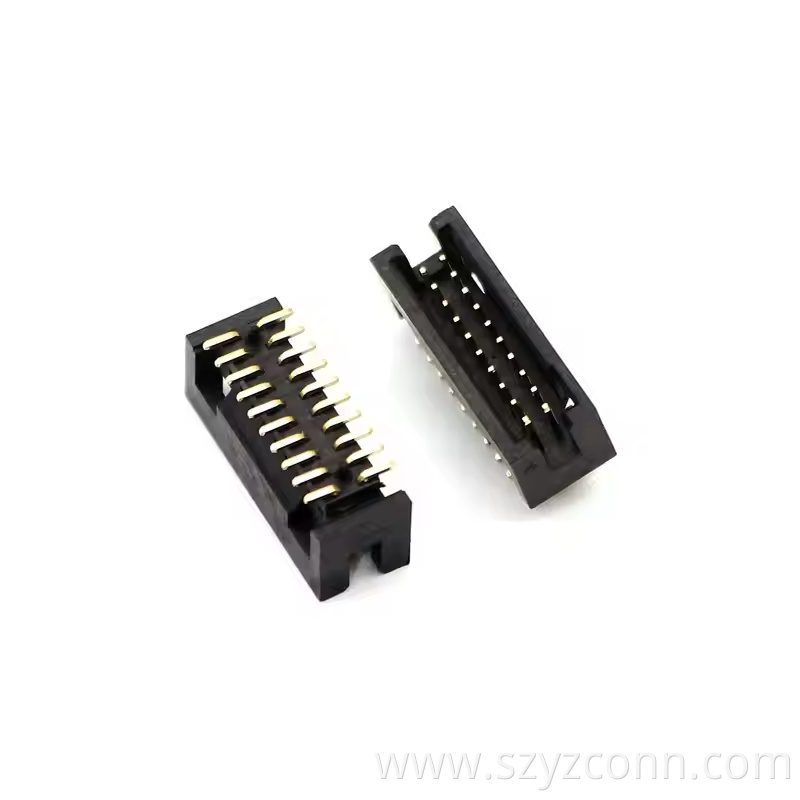

1.27mm Pitch Box Header SMT H5.7mm 6P-80P (1)

This 1.27mm Box Header Connector 20p features high-quality C2680 phosphor bronze terminals (finely gold-plated) paired with high-temperature-resistant LCP (UL94V - 0) insulators, soldered via advanced SMT technology. It can stably transmit signals at a rated current of 3A/pin in environments ranging from -40°C to +105°C, with contact resistance controlled within 18mΩ. The 5.7mm height design allows for flexible combination with Right Angle Box Header, meeting the three-dimensional cross-wiring needs of complex circuits and being highly compatible with idc box header Connector. The flexible 10 - 50 PIN configuration is widely used in communication base stations, industrial control motherboards, etc.

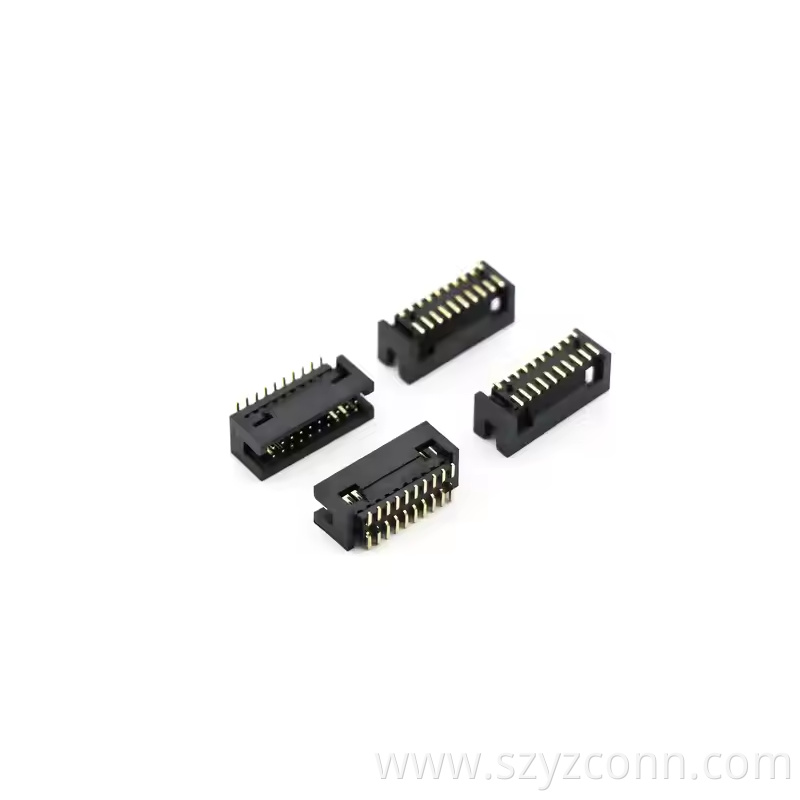

1.27mm Pitch Box Header SMT H5.7mm 6P-80P (3)

Certified by ISO9001, ISO14001, and RoHS-compliant, anti-static carrier box packaging supports customized services, providing reliable connection solutions for both conventional applications and special scenario requirements of box header.
