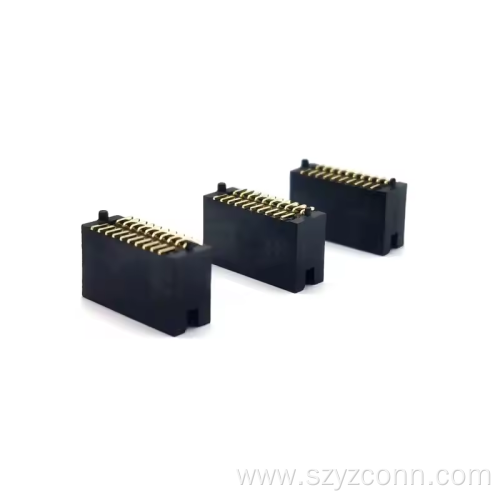

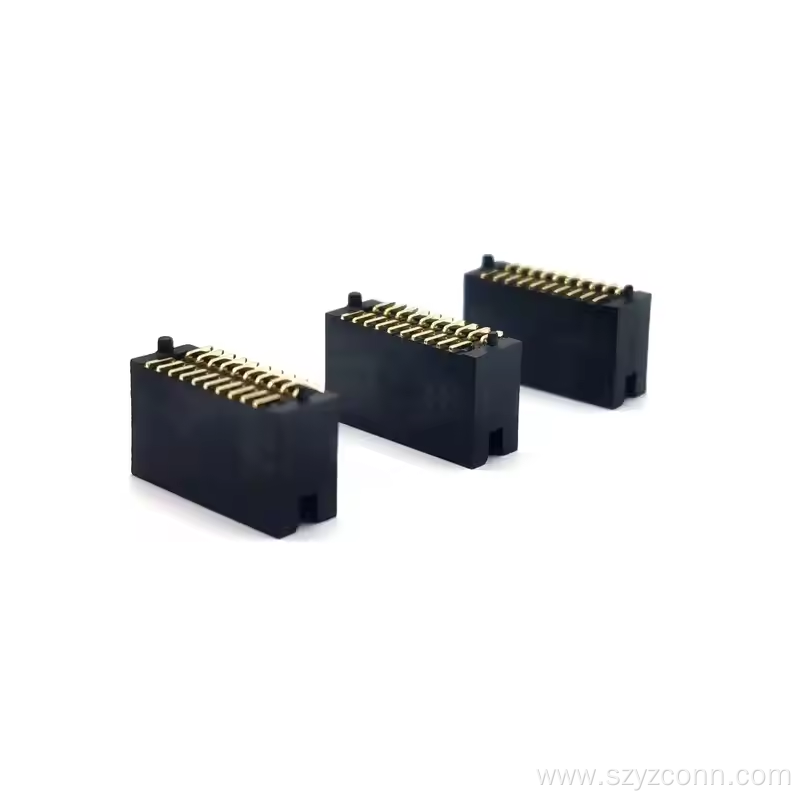

1.27mm Box header Connector SMT 20P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 2-core 20P

Contact Now

Product Description

Product Attributes

Model No.: 052954

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Other

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.27mm Box Header Connector SMT 20P

yztech’s 1.27mm Box Header Connector SMT 20P is a professional solution designed for high-density electronic devices with special height requirements. As an innovative model in the smt box header category,the standard 1.27mm pitch and heightened design of this 20p 1.27mm Box Header SMT precisely meet the differentiated installation needs of PCB boards in three-dimensional spaces, standing out in the 1.27 mm box header field for its unique structural advantages and process compatibility.

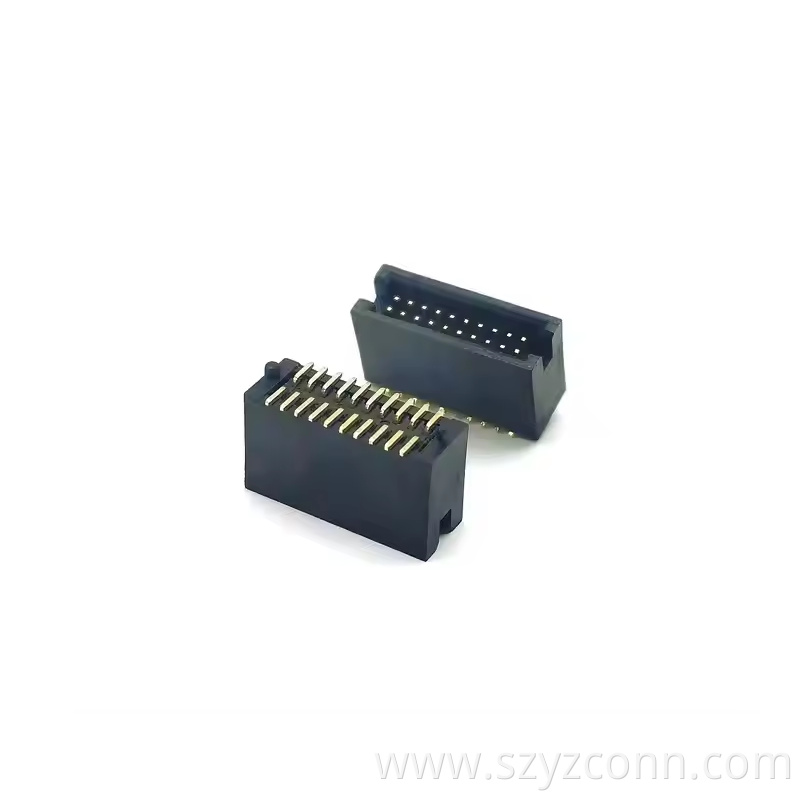

1.27mm Pitch Heighten Type Box Header SMT H9.09.917.8mm 10P-100P (1)

Featuring phosphor bronze terminals (gold plating thickness ≥50u") and high-temperature-resistant PBT (UL94V-0) housings, the connector20p 1.27mm box header connector enables automated soldering via SMT technology, stably transmitting signals in -40°C to +105°C environments with contact resistance ≤20mΩ. The heightened terminal structure of these 20p 1.27mm Box Header Connectors supports three-dimensional cross-wiring with Right Angle Box Header, optimizing space utilization while avoiding signal interference. The 20-60 PIN modular configuration is compatible with diverse connection needs of idc box header Connector, widely used in AI motherboards, industrial robot control modules, etc.

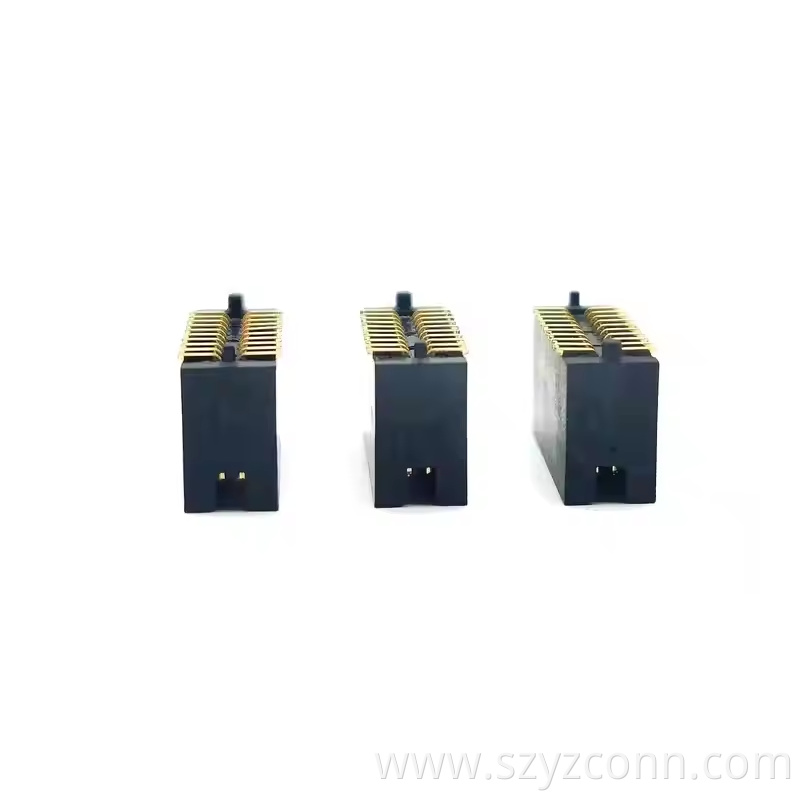

1.27mm Pitch Heighten Type Box Header SMT H9.09.917.8mm 10P-100P (2)

Certified to IPC-A-610 and RoHS-compliant, anti-static carrier tape packaging supports customized height services, providing idc box header connector-level solutions with both reliability and flexibility for special application scenarios of box header.
