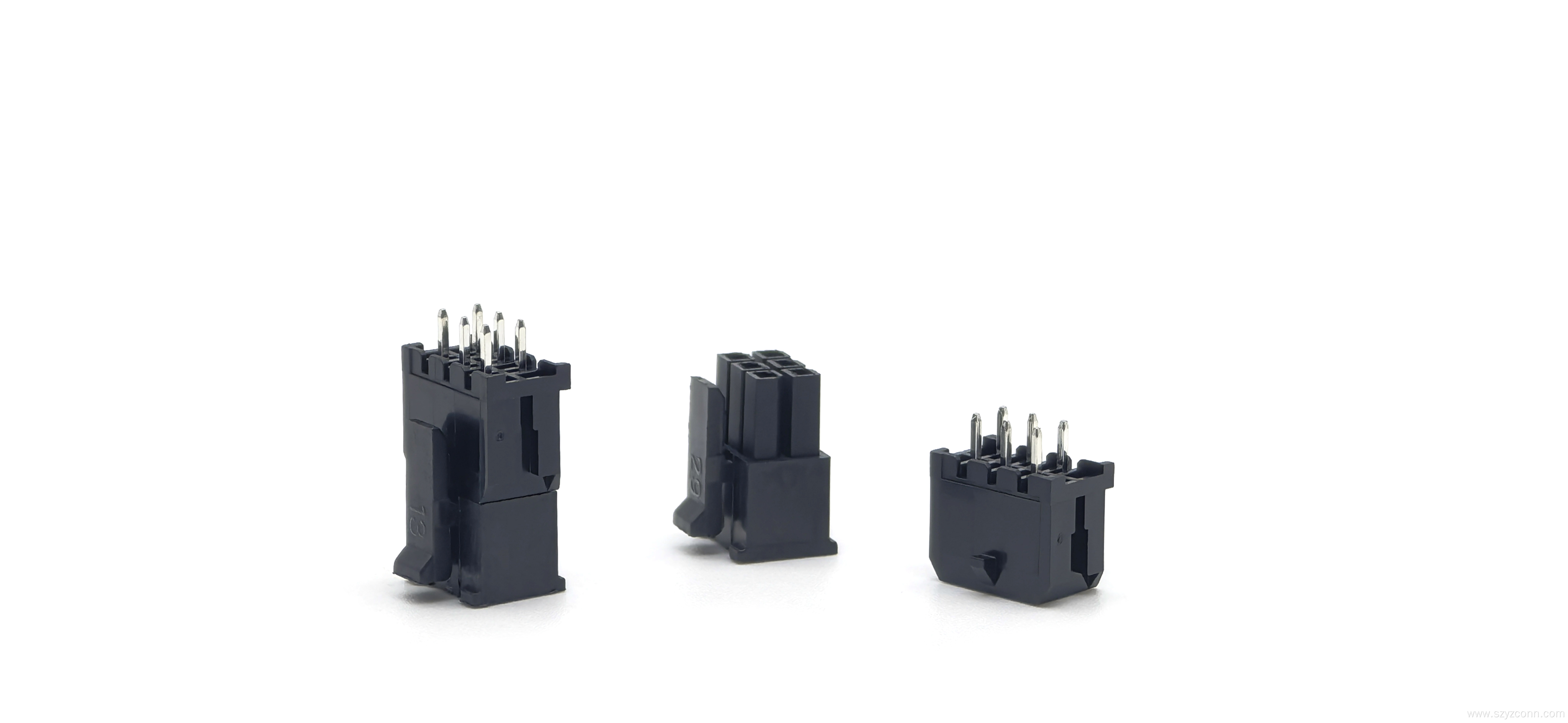

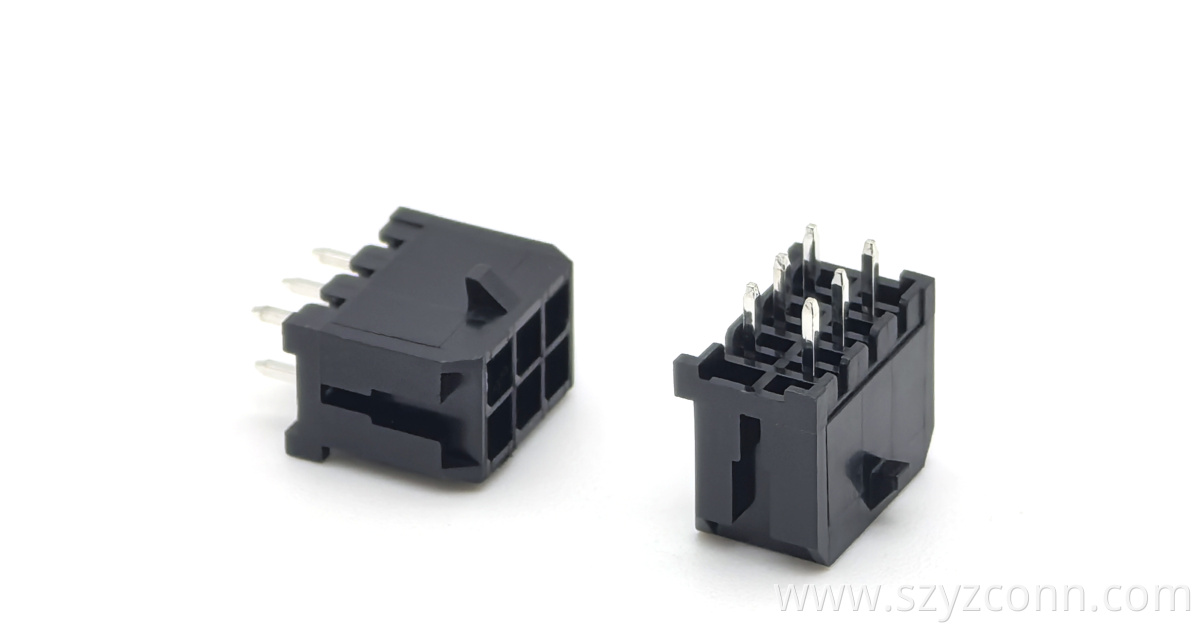

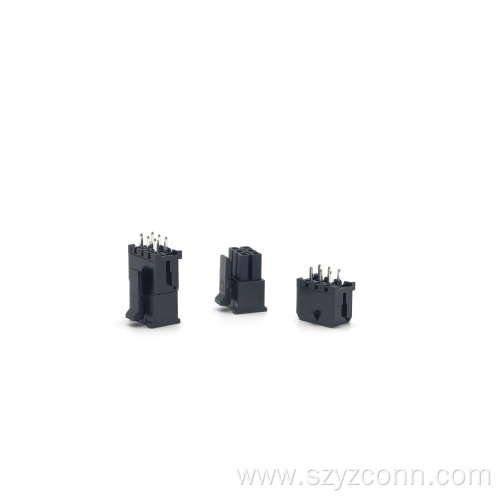

Wafer MLX3.0 Pin header Connector Male Shell

Wafer MLX3.0 pin header connector Male Shell

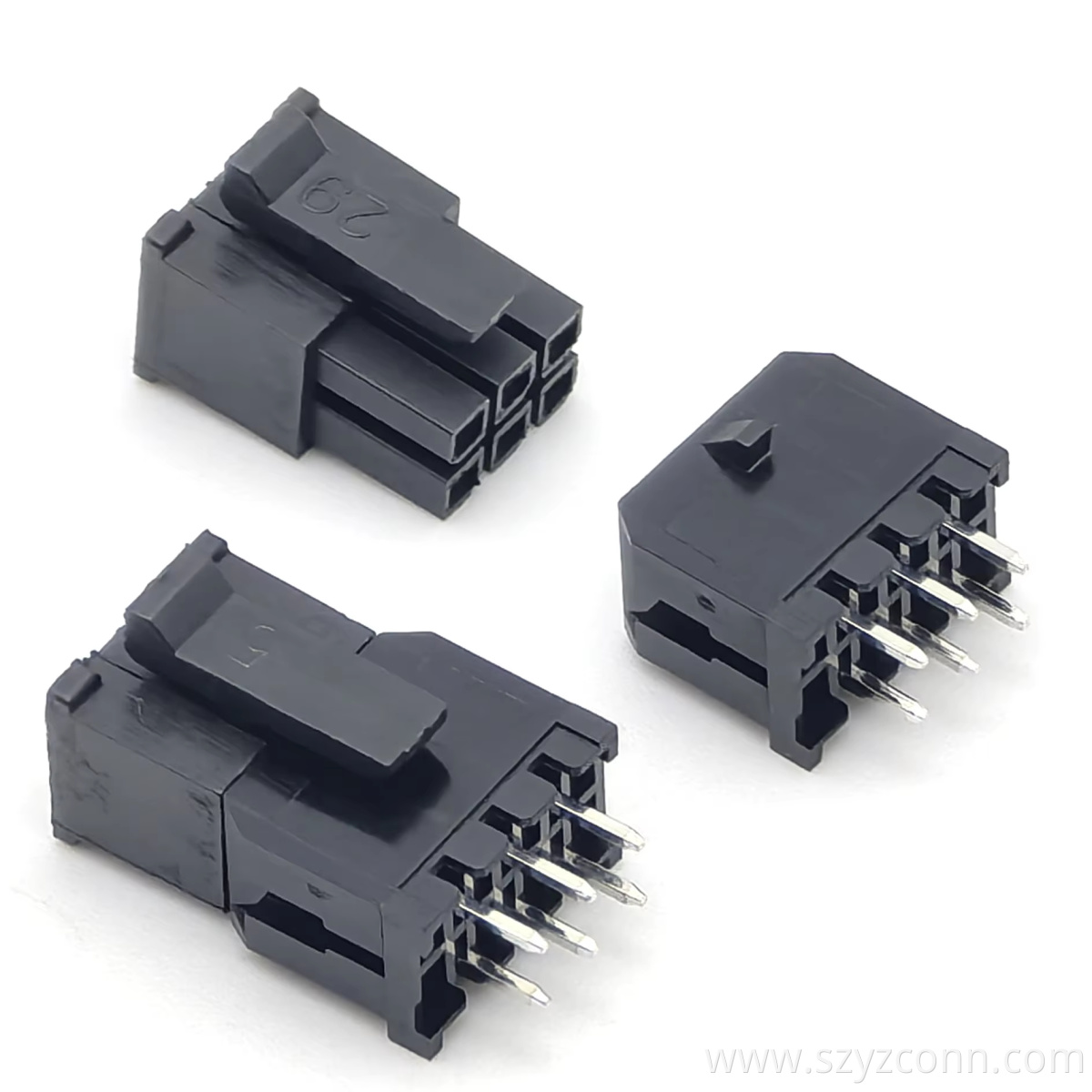

The YZTECH Wafer Wafer MLX3.0 Pin header connector Male Shell introduces a 180-degree DIP male header Connector,delivering reliable power delivery for PCB-based interconnection tasks that require up to 7A with 600V rating.Its 3.00mm contact spacing gives designers a harmonious balance between dense packaging and dependable mating integrity,while the dual-row arrangement equips the wafer houisng terminal 6p,allocating three positions per row to accommodate varied board-level routing needs.The straight insertion method streamlines through-hole assembly,which aligns well with high-volume soldering processes.This Wafer Pin header Connector straight could be found in the Wafer Housing Terminal of the catalog.

The contact system starts with high-grade copper as the base conductor closely followed by a uniform tin-plated overlayer,which supports favorable solderability and moderate corrosion resistance throughout the equipment's service life.The insulating collar is molded from PA66,a glass-reinforced thermoplastic that exhibits excellent electrical isolation,maintains its dimensional stability under heat,and contributes to the rated temperature window.Its rectangular shape aids visual alignment during board placement,while the 2x3 position layout distributes mechanical mating forces evenly,decreasing the risk of pin damage during blind or angled insertion.The dual-row pattern also improves creepage distances between neighboring contacts,supplementing the 600V rating.

The wafer houisng connector non-k arrives sorted in protective bag-and-box packaging,assembly lines benefit from reduced handling time and lower risk of loose parts contamination.The through-hole termination style,reinforced by the straight 180° orientation,yields robust solder fillets that reliably anchor the header to the PCB across a wide range of wave and reflow soldering profiles.
