Quality Inspection Notes for Pin Header Connectors

Pin Header connectors,essential electronic components,serve as key electronic connectors in circuit boards.Their quality directly impacts device stability and safety.A thorough quality inspection must cover five critical areas:visual appearance,dimensional accuracy,structural integrity,electrical performance,and packaging.

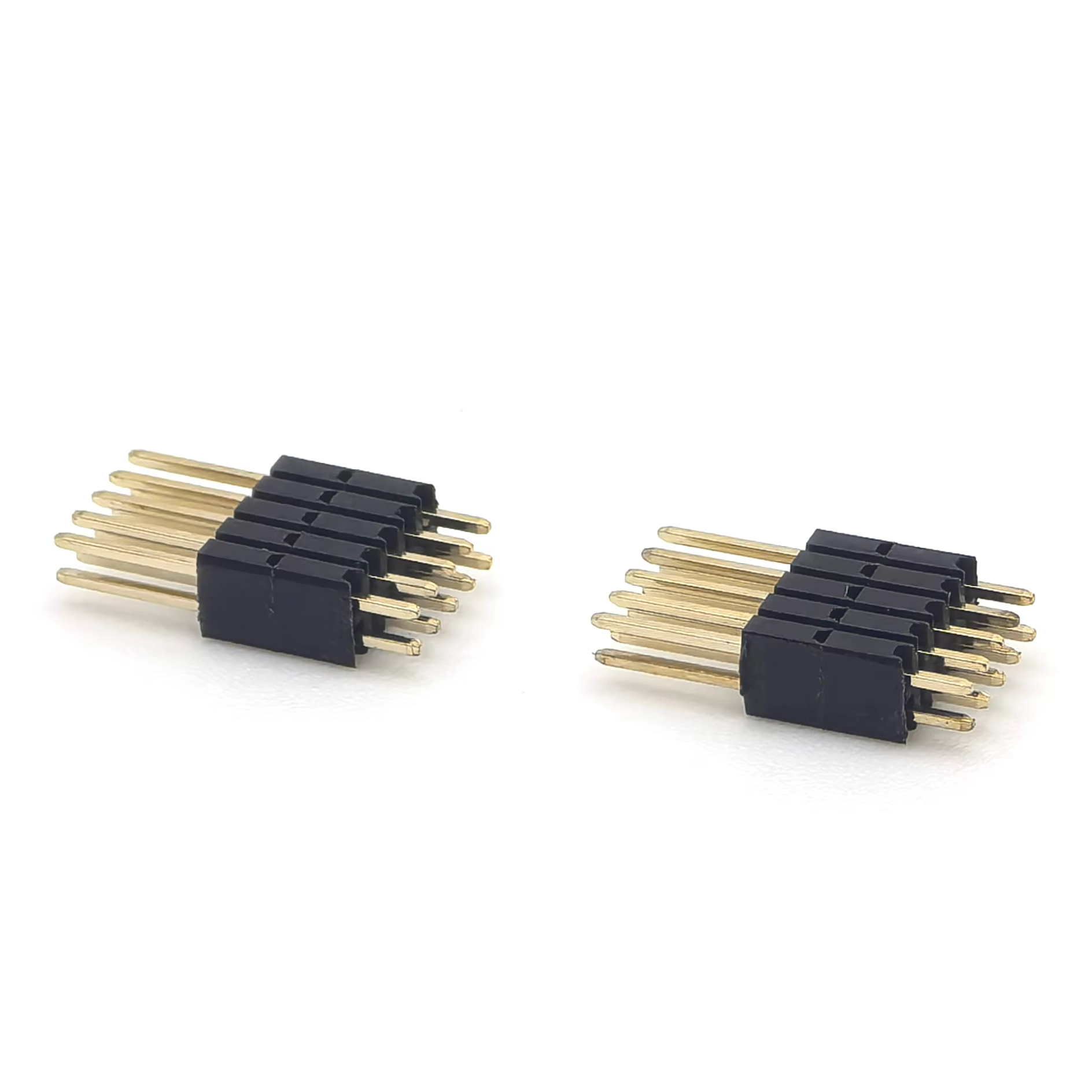

1.27mm pin header dual row
Visual inspection checks the plastic housing for cracks,flash,or contamination,and the metal pins for oxidation,plating defects,burrs,or bending.Dimensional verification ensures pitch,length,and height conform to drawings—preventing misalignment that could cause poor contact.Structural tests confirm pin retention within the housing and the robustness of latches or positioning posts,avoiding loosening under vibration.Electrical performance testing validates continuity,insulation resistance,and withstand voltage,preventing short circuits or breakdowns.Packaging inspection ensures anti-static protection and correct labeling for traceability,reducing damage during transport.
2.54mm pin header smt
By rigorously enforcing these checks,manufacturers guarantee that each pin header connector meets reliability standards.This systematic approach to inspecting pin header and Other Connector types is vital for product durability and safety,supporting the performance of sophisticated electronic systems across industrial,automotive,and consumer applications.
