Pin Header Connector With Positioning Posts: Small Structure, Great Function

Pin Header connectors, essential electronic components, often include raised positioning posts to solve misalignment and loosening issues. These posts ensure precise alignment during manual or automated assembly, preventing pin bending or PCB damage—common failures in fine-pitch pin header mating.

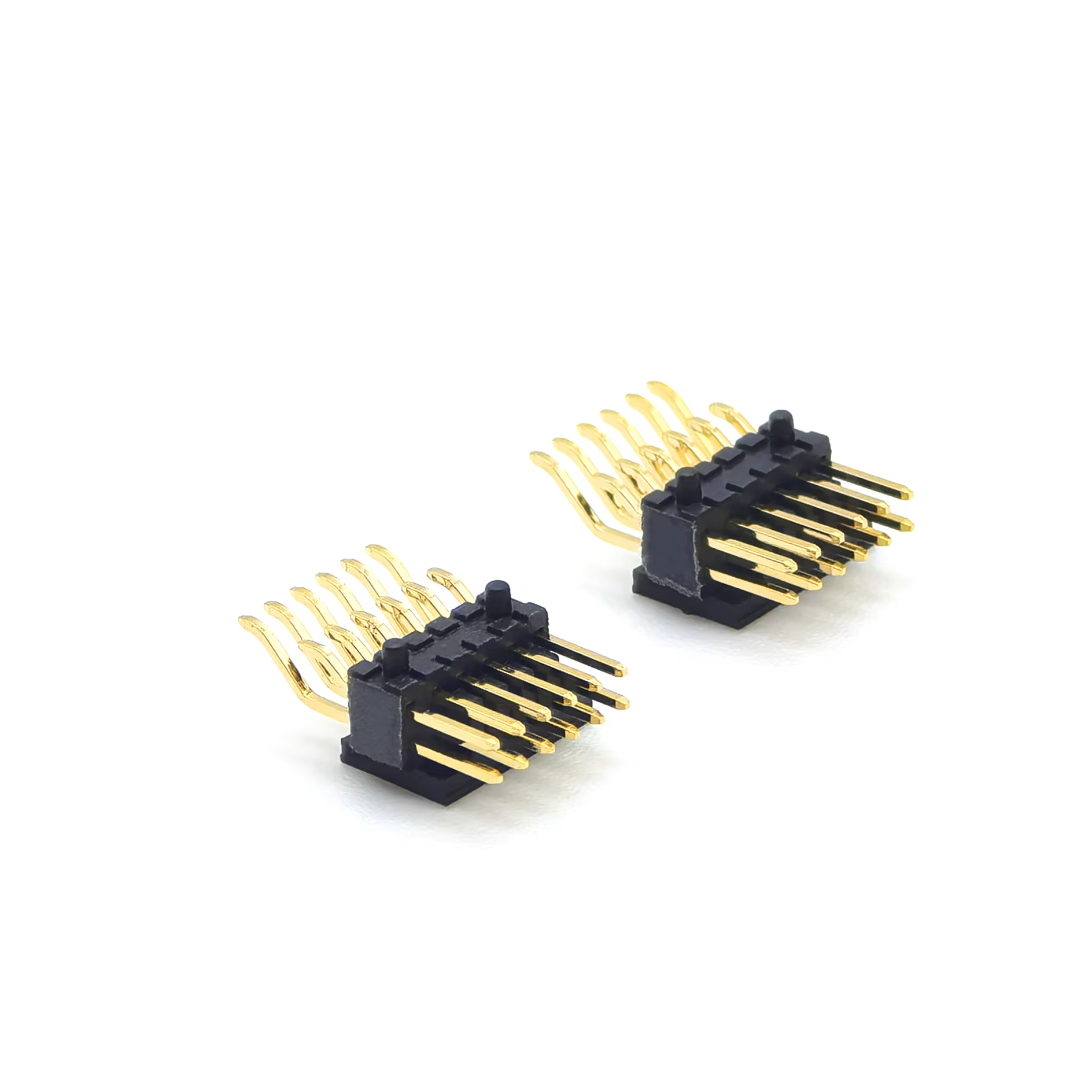

1.27mm Pitch Pin header Connector With Side Posts Dual Row Right Angle SMT SQ0.4/0.46mm H2.5mm 2*6P
They also strengthen connections by sharing mechanical stress, improving vibration resistance and preventing solder-joint fatigue. In automated production, posts enable accurate positioning and polarization to prevent reverse insertion, streamlining high-speed assembly. This simple feature enhances assembly efficiency and product reliability, making it indispensable for precision electronic Connector applications. Whether for prototyping or mass production, the positioning post transforms a standard pin header connector into a robust, error-proof interconnection solution, proving that small design details deliver significant value in modern electronics.
1.27mm Pitch Pin Header Dual Row Right Angle SMT Pins 5-20: No Connect SQ0.4mm H:2.5mm 2*12P
September 09, 2026
