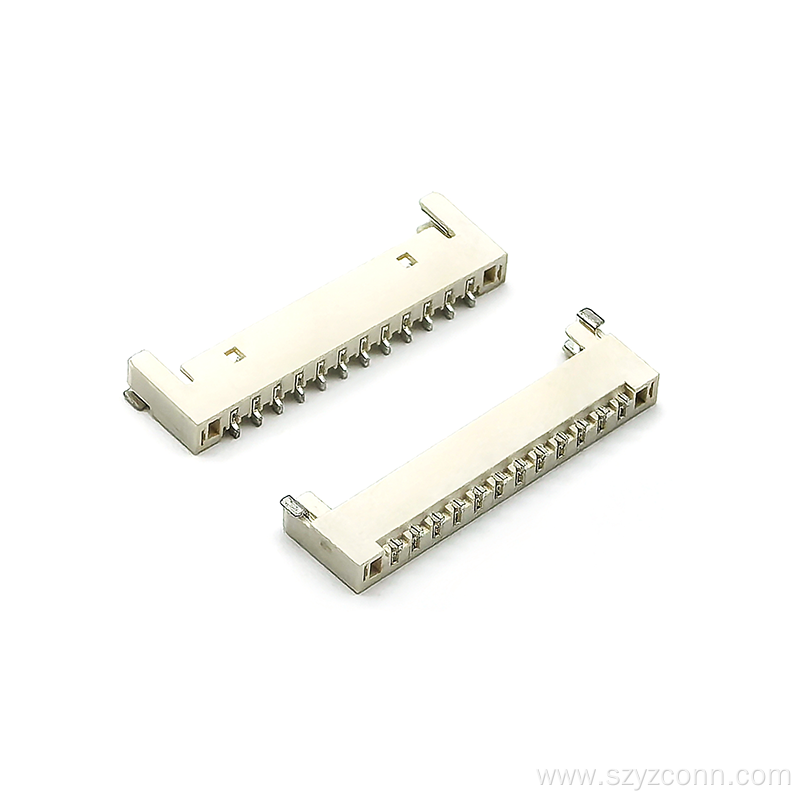

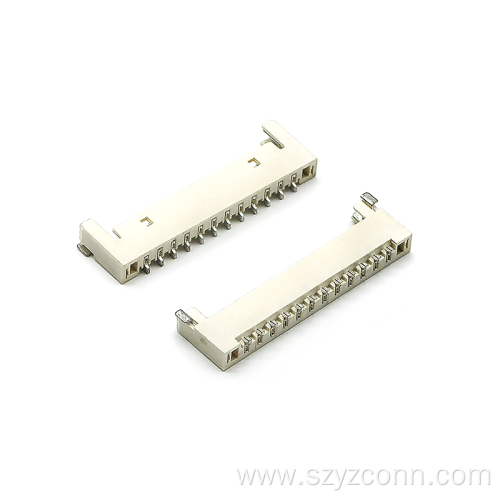

15005 Flat LED Pin Header Connector

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Ivory 1-core 12P

Contact Now

Product Description

Product Attributes

Model No.: 070881

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Other

Package: Other

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Reel&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

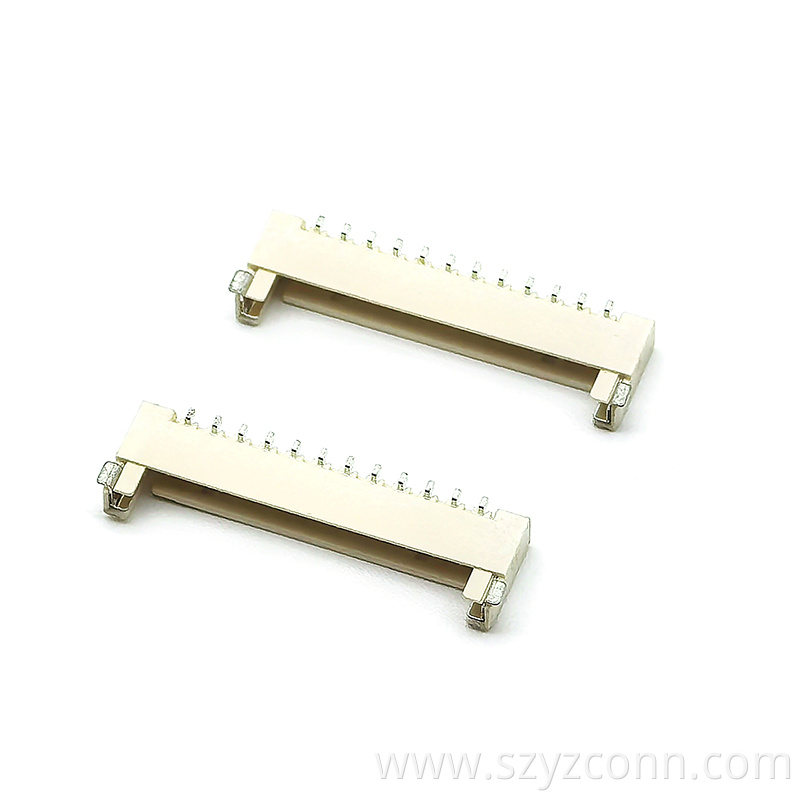

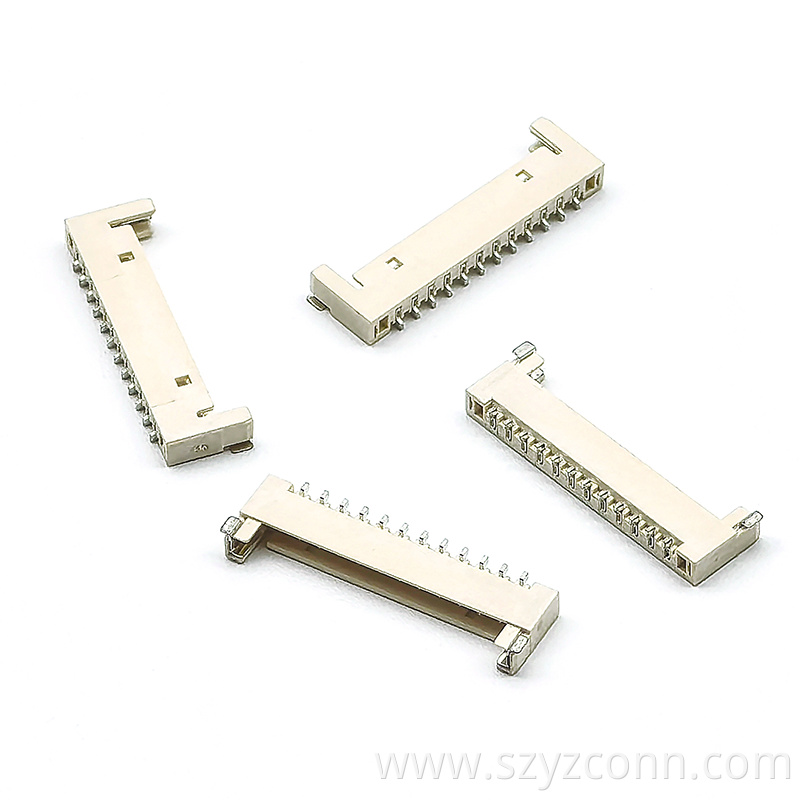

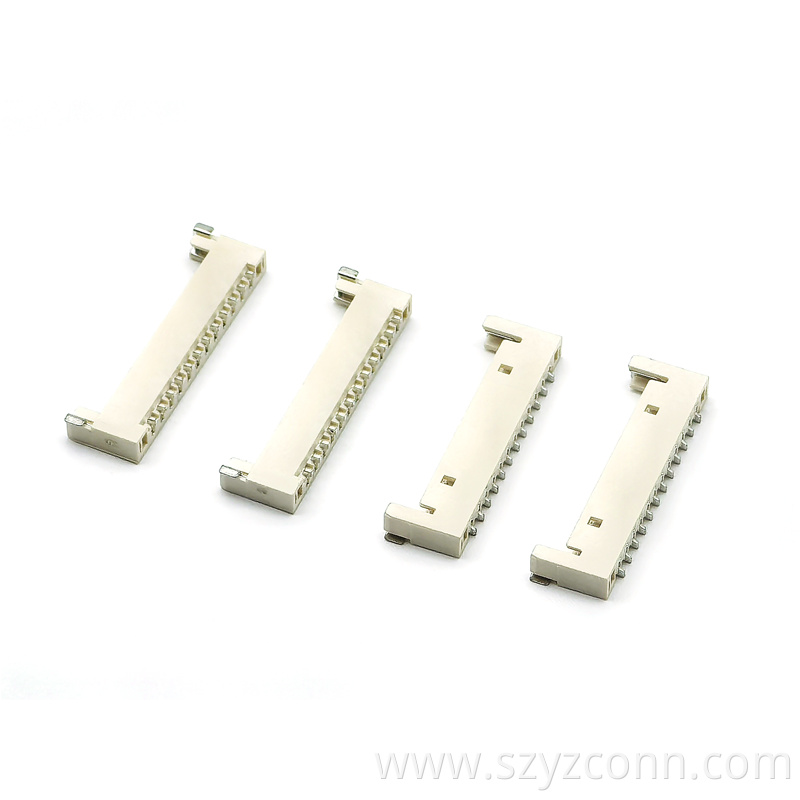

15005 Flat LED pin header connector

The 15005 Flat LED Pin header connector by yztech, featuring a flat pin design, is a preferred component for stable connections in thin LED devices.The unique structure of this 15005 flat LED Connector precisely meets the thinness requirements of LED Connector , widely used in ultra-thin LED panels and micro-display backlight modules. As a product complying with Standard LED Connector specifications, it can flexibly match 2Pin LED Connector and 3Pin LED Connector to meet power and signal transmission needs of various LED devices.

The shell of this 15005 standard led connector, made of high-strength insulating material with excellent heat resistance, works stably at -40℃ to 105℃. When used with Wire-to-Board LED Connector, it enables reliable wire-PCB docking and acts as an ideal partner for LED Module Connector to facilitate thin LED modular system construction. Unlike the sealed design of Waterproof LED Connector,these 15005 flat LED Connectors focuse on connection stability in a flat structure, suitable for indoor dry environments, and can combine with Wire-to-Wire LED Connector to expand connection methods.

Internal pins, made of high-conductivity material, have a contact resistance of 6mΩ and over 1000 insertion cycles, ensuring stable current transmission. It is preferred for thin LED lighting networks and precision electronic device interconnections due to unique structural advantages and reliability.
