2.0mm Box Header Connector Right Angle 50P

2.0mm Box Header Connector Right Angle 50P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 2-core 50P

Contact Now

Product Description

Product Attributes

Model No.: 052962

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Tube

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Tube&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

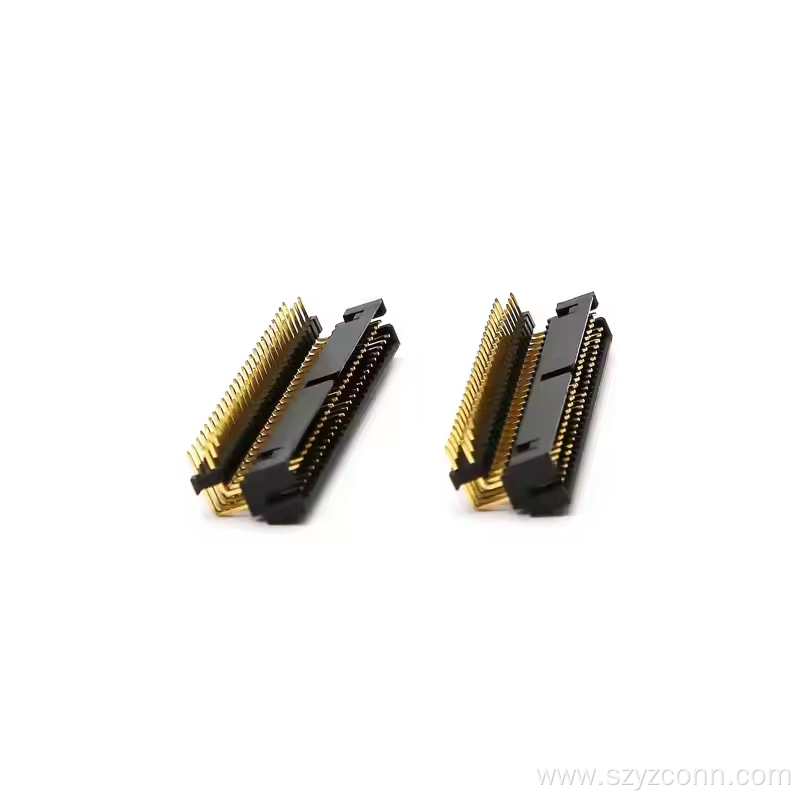

2.0mm Box Header Connector Right Angle 50P

yztech’s 2.0mm Box Header Connector Right Angle 50P is an innovative solution for complex circuit layouts and space limitations. As a versatile model in the box header series,the standard 2.0mm pitch and right-angle add-pin design of black 2.0mm box header connector precisely meet the three-dimensional cross-wiring needs of PCB boards, standing out in the 2.0mm box header category for its flexible structure and stable signal transmission.

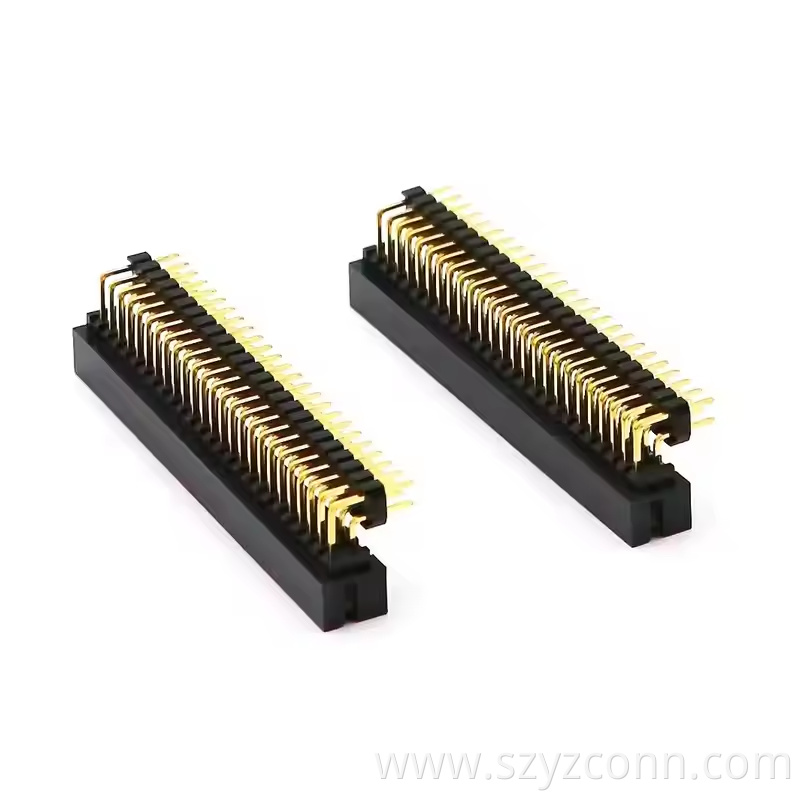

2.0mm Pitch Box Header Right Angle Add Pin Header Plastic H6.35mm 6P-90P (2)

Featuring phosphor bronze terminals (gold plating thickness ≥50u") and chemically resistant PBT (UL94V-0) housings, the black 2.0mm Box Header Connectors stabilize 3A/pin current in -40°C to +105°C environments with contact resistance ≤20mΩ. The unique Right Angle Box Header structure of this 2.0mm box header right angle 50p supports 90° right-angle wiring, effectively saving space and avoiding signal interference while being compatible with diverse expansion needs of idc box header Connector.The 10-50 PIN modular add-pin configuration can be flexibly adjusted according to project requirements, widely used in drone motherboards, medical device control modules, etc.

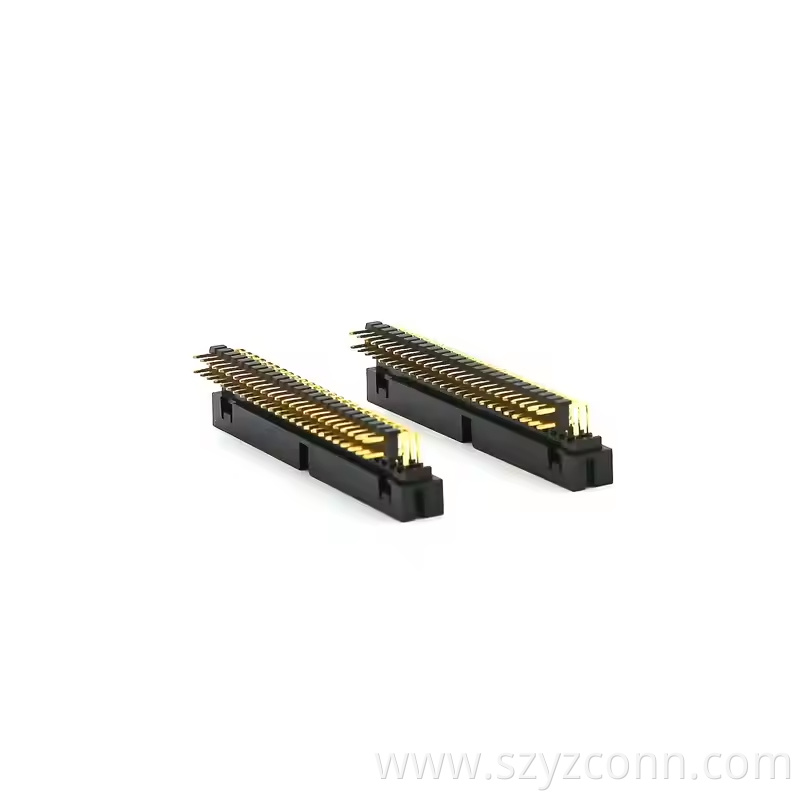

2.0mm Pitch Box Header Right Angle Add Pin Header Plastic H6.35mm 6P-90P (4)

Certified to IPC-A-610 and RoHS-compliant, anti-static carrier tube packaging supports customized angle forming services, providing 2mm box header connector solutions with both process precision and reliability for smt box header supporting needs and independent projects.
