1.27mm Pitch Female header Connector 10P

1.27mm Pitch Female header Connector 10P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 2-core 10P

Contact Now

Product Description

Product Attributes

Model No.: 1102-1R/B-2*5P-H3.4/4.3-U-F-04

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Tube

Supply Type: Original Manufacturer

Place Of Origin: China

Pin Or Socket: Socket

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Tube&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

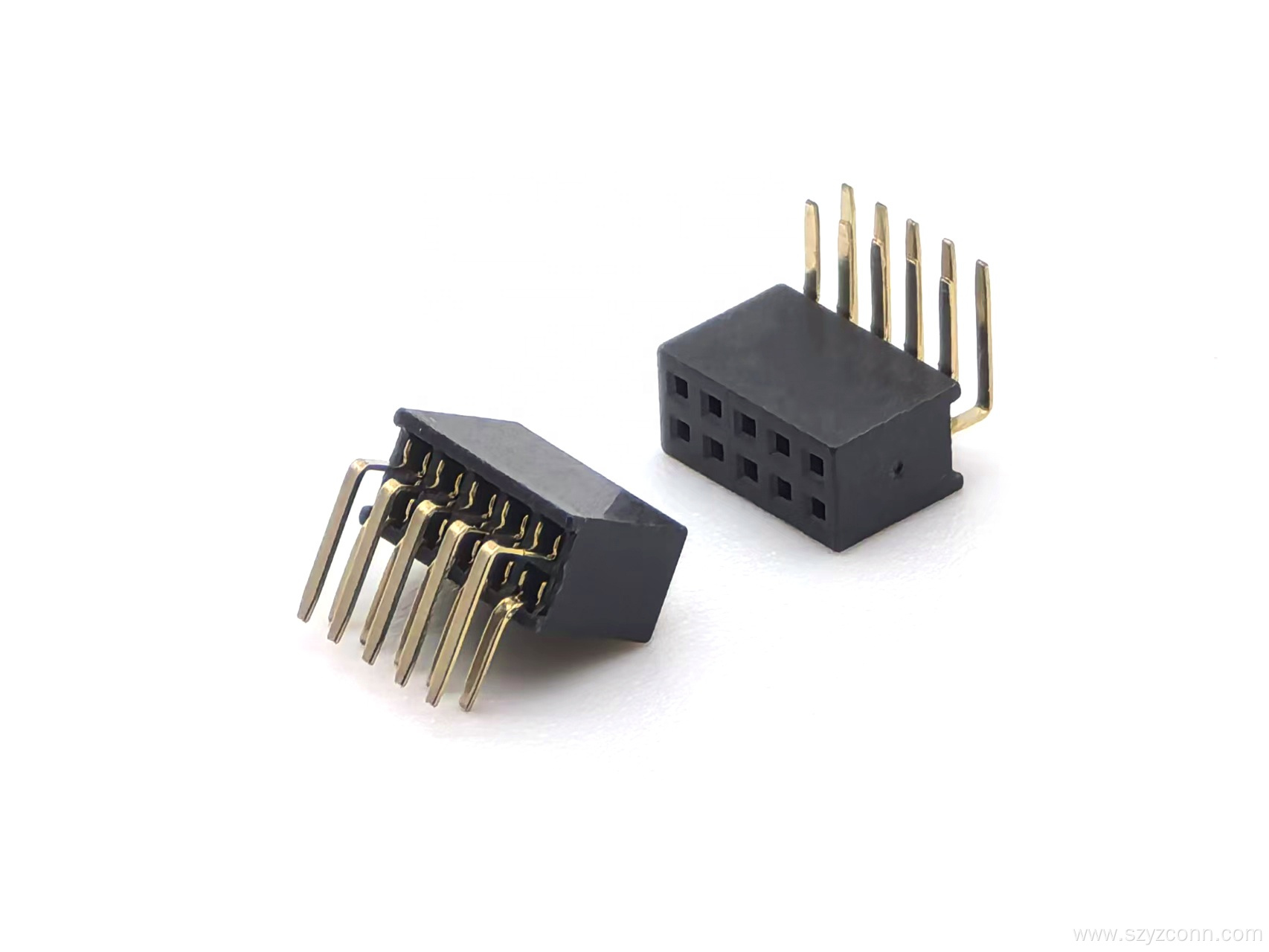

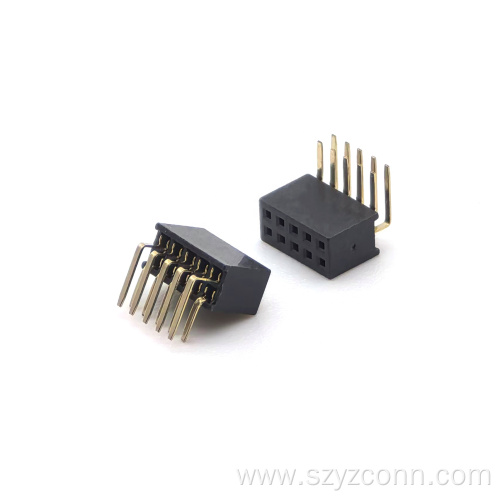

1.27mm Pitch female header connector 10P

YZTECH introduces a specialized 1.27mm Pitch Female header connector 10P featuring a unique U-type contact design,engineered for high-density PCB applications requiring exceptional voltage performance.This 5-pin-per-row 1.27mm Female Header right angle utilizes a "bending plug" installation style, creating a secure,low-profile interface ideal for parallel board-to-board connections.Its sophisticated U-shaped socket geometry provides enhanced contact stability and insertion reliability.With a remarkable 1000V rated voltage and 1A current capacity,this component is perfectly suited for high-potential applications in telecommunications infrastructure, medical equipment,and industrial control systems where signal integrity and voltage isolation are critical.

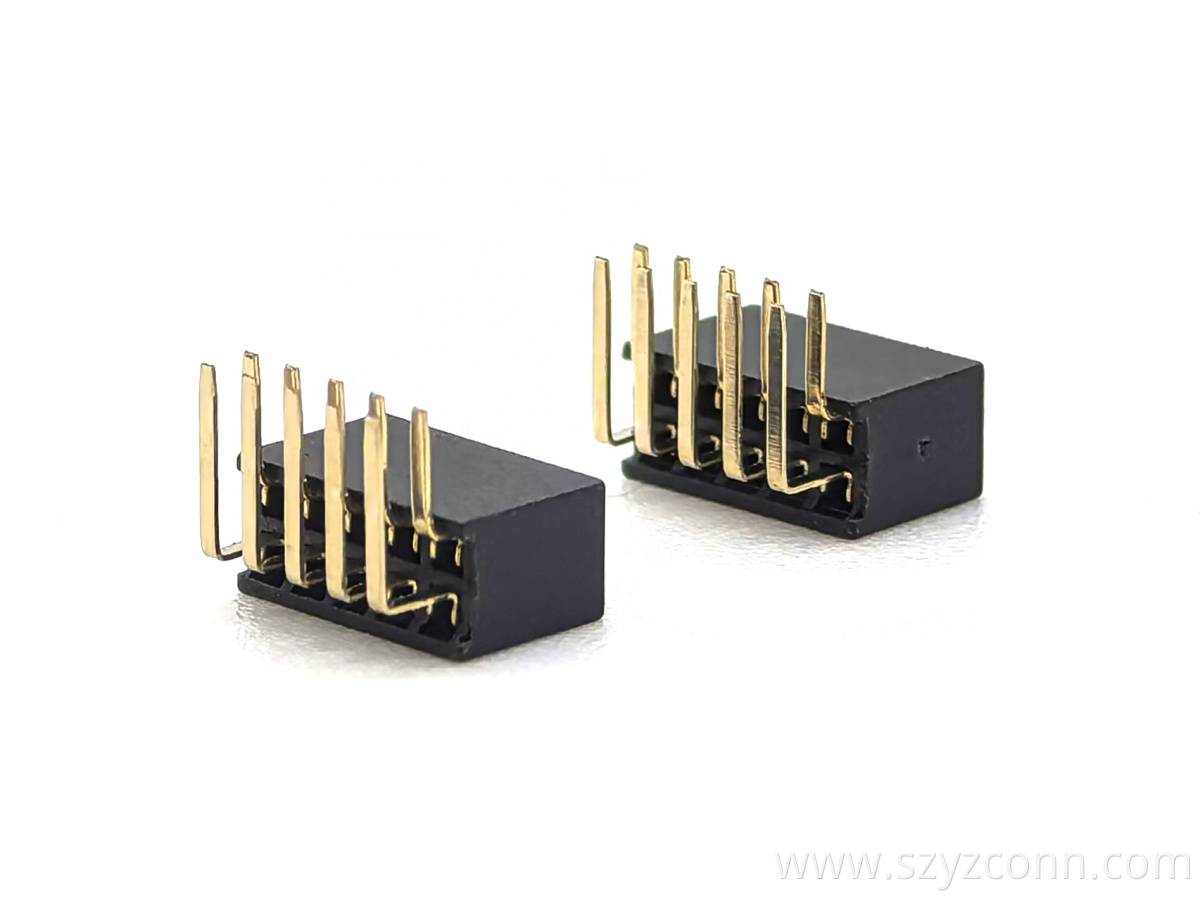

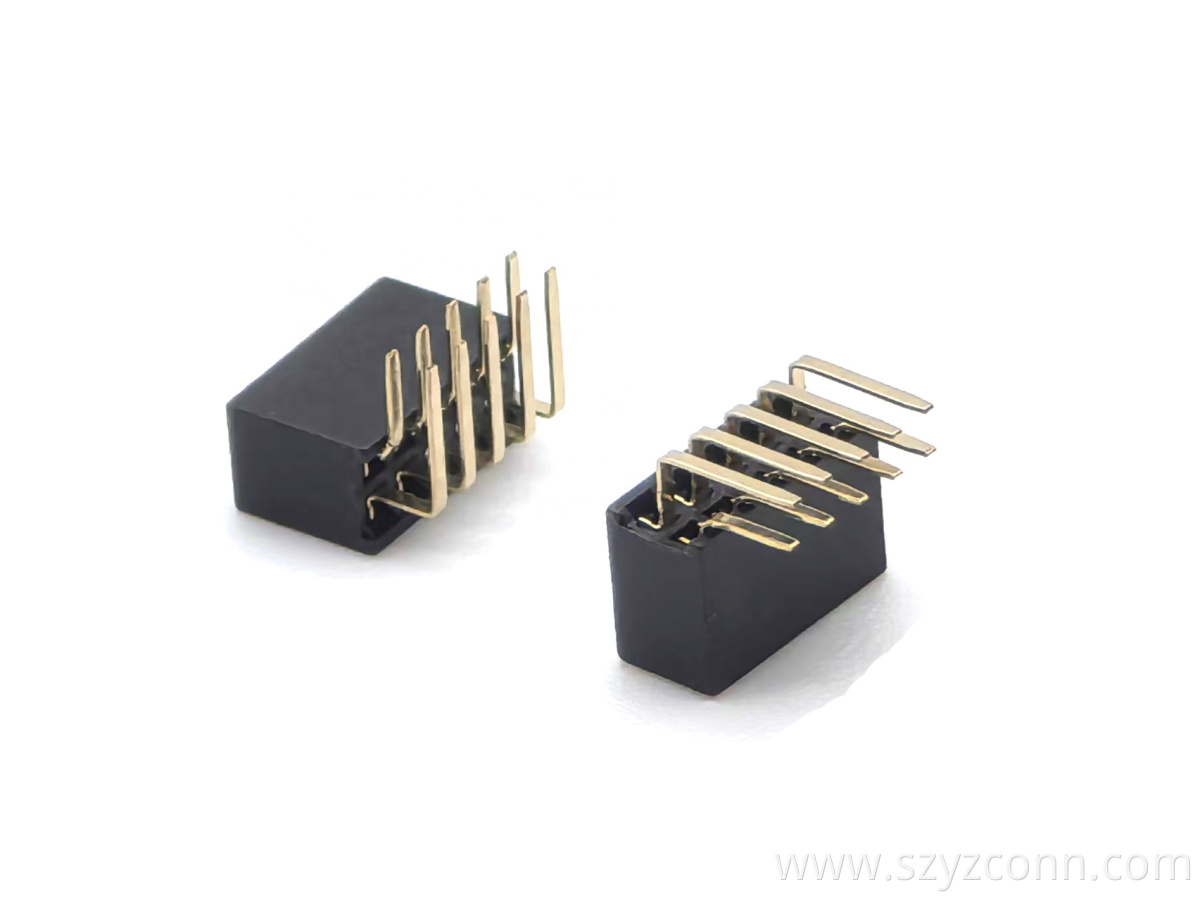

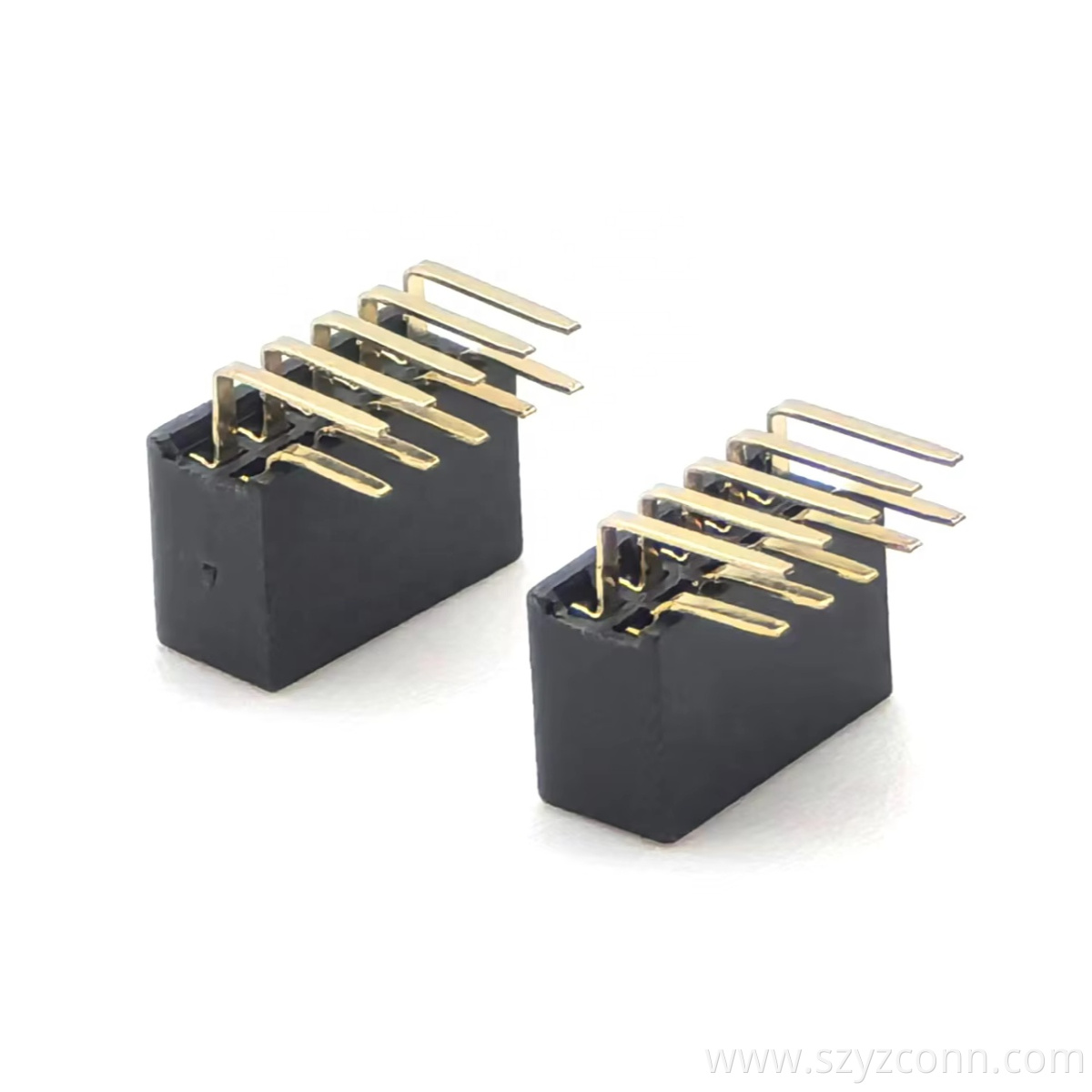

1.27mm Pitch Female Header Connector Dual Row Right Angle U-Type H4.3mm 2*5P

The connector's advanced construction ensures superior electrical and mechanical performance.The U-type contacts are precision-formed from brass and finished with a durable gold plating,delivering low contact resistance,excellent corrosion resistance, and reliable mating performance through extensive connection cycles.The housing of this 1.27mm Female Header 10p is manufactured from high-temperature PA6T thermoplastic,offering outstanding mechanical strength,dimensional stability, and thermal resistance capable of withstanding reflow soldering temperatures up to 260°C for 10 seconds.This robust material combination ensures consistent operation across the broad temperature spectrum from -40°C to 105°C.

Packaged in protective tubes that maintain precise pin alignment and prevent mechanical damage,this 1.27mm female header supports both automated assembly and manual installation processes.Its combination of fine-pitch design, specialized contact geometry,and high-voltage capability makes this 1.27mm female header connector 10p particularly valuable for advanced applications in network servers, automotive control units, and precision measurement instruments.
