1.0mm Pitch Pin Header Right Angle

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	S,h,e

Option:

Black 1-core 9P

Contact Now

Product Description

Product Attributes

Model No.: 052802

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Other

Supply Type: Original Manufacturer

Place Of Origin: China

Pin Or Socket: Pin

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Tray&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

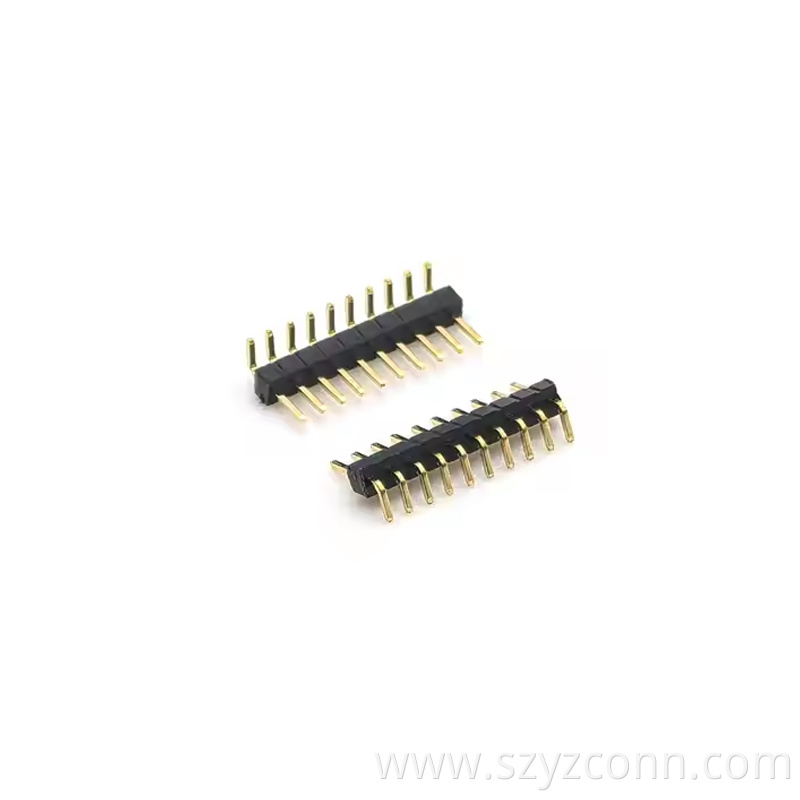

1.0mm Pitch Pin Header Right Angle

yztech’s 1.0mm Pitch Pin Header Right Angle is the perfect choice for optimizing the internal space layout of electronic devices,specially designed for compact electronics, industrial computers, etc. As a featured product in the Pin Header series, its 1.0mm pitch combined with a right-angle structure effectively saves space,especially suitable for PCB Pin Header applications with specific installation direction requirements.The 1.0mm pin header 90 degree is a model in the 1.0 mm pitch header category that balances performance and space utilization.

This 1.0mm pitch header 10p supports various soldering types such as SMT and through - hole, easily adapting to different production process requirements. With high-quality C2680 terminals paired with black LCP (UL94V - 0) insulators, it operates stably at a rated current of 2A/pin in environments ranging from - 40°C to + 105°C. The Gold Flash plating, combined with a ≥50u" nickel base layer, controls the contact resistance within 20mΩ, ensuring stable signal transmission. The flexible 6 - 64 PIN configuration meets the connection needs from simple circuits to complex systems and is highly compatible with Female Header Pins.

1.0mm Pitch Pin Header Right Angle H1.01.5mm 12P-150P (1)

Certified by ISO9001, ISO14001 and RoHS-compliant, the 1.0mm Pin Header 10p comes in standard plastic tray+carton packaging.Offering flexible ODM and OEM customization services, it meets diverse market demands and is also an excellent option for searches related to 1mm pitch header and pin header 90 degree.
