An Overview of Application Fields for XHB Belt Buckle Through-Type Pin Header Connectors

An Overview of Application Fields for XHB Belt Buckle Through-Type Pin Header Connectors
The XHB snap-on straight-pin connector is a 2.54 mm pitch wire-to-board connector featuring a built-in snap-lock mechanism;it is directly soldered vertically onto the PCB,combining ease of assembly with high connection reliability.As a universal basic interconnection component in the electronics industry,it finds applications across a wide range of scenarios.

In the realm of household smart appliances,this wafer pin header connector is widely used for connecting control boards of small appliances—such as humidifiers,air purifiers,robotic vacuum cleaners,coffee makers,and LED lighting driver boards—where it handles both power and signal transmission between the mainboard and components such as fans,buttons,indicator lights,and sensors.Its built-in locking mechanism prevents the plug from loosening due to device vibration,ensuring long-term stable operation of the appliance.

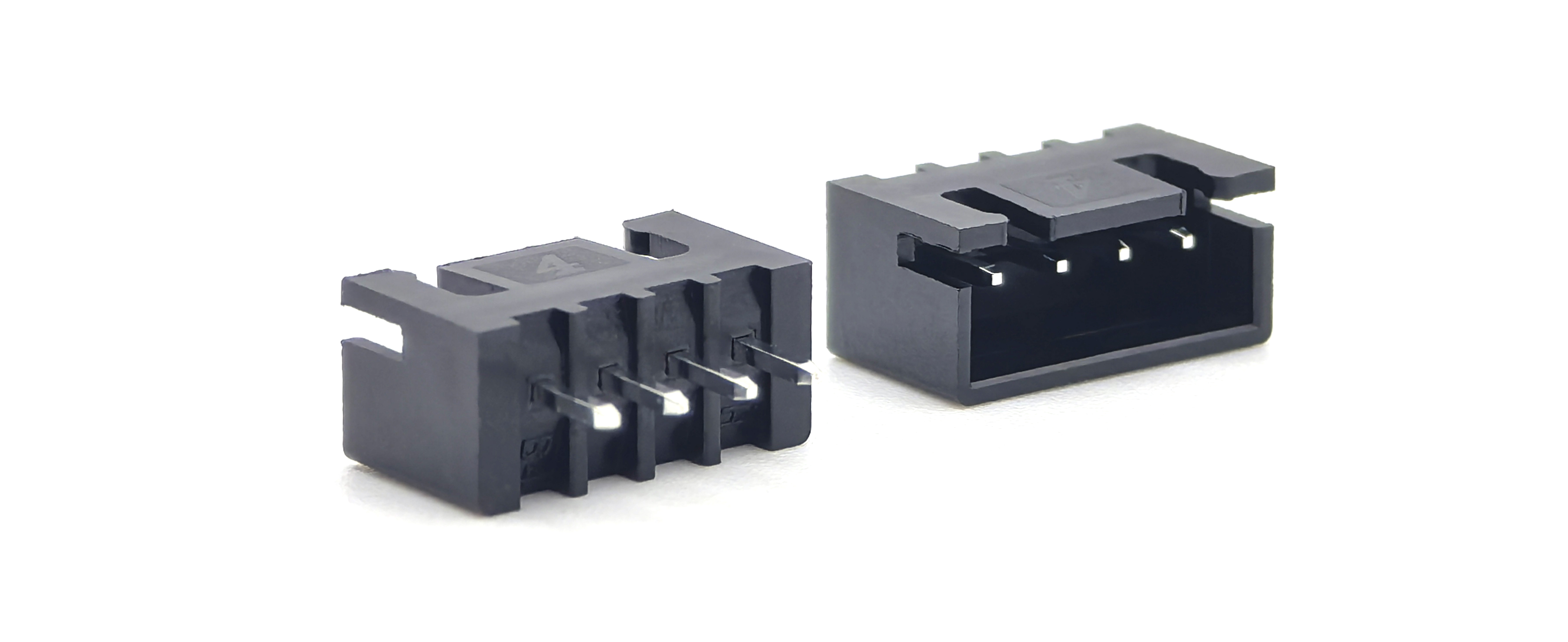

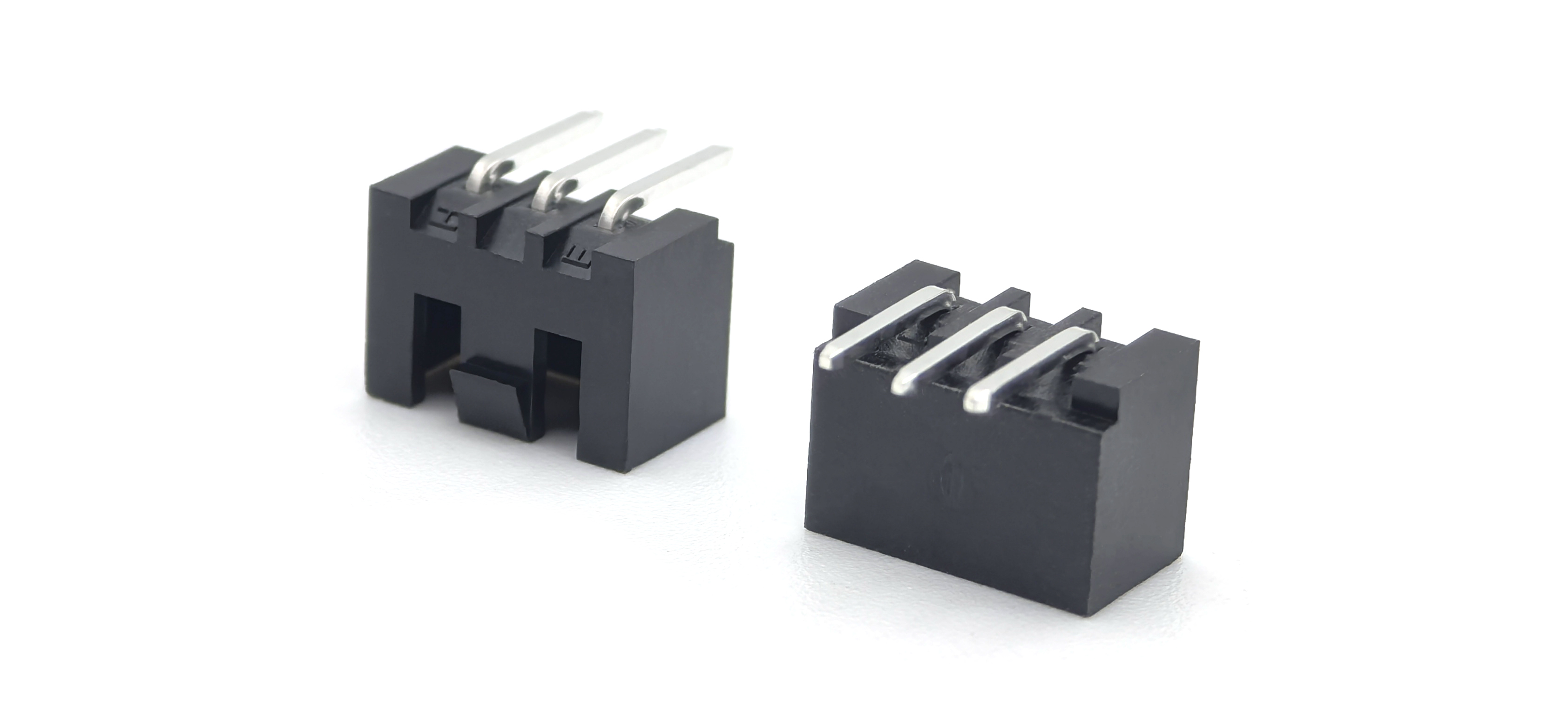

wafer pin header connector pa66 material

Consumer electronics and digital modules also extensively utilize XHB snap-in pin headers.In Bluetooth devices,speakers,pan-tilt units,remote-controlled models,and display module internal wiring systems,XHB snap-in pin headers are frequently employed.The modular design facilitates product assembly and subsequent maintenance;the male and female connectors allow for quick insertion and removal,making them ideal for digital products that require easy disassembly and reassembly.

In industrial automation applications,various types of small controllers,sensor modules,test instruments,and industrial control panels are widely used.These wafer header connector are employed to connect photoelectric switches,temperature sensing modules,and signal lines for small actuators.The snap-fit structure enhances vibration resistance and effectively mitigates poor contact issues caused by operational vibrations in production equipment.

Beyond these applications,it is also widely used in security surveillance equipment,small-scale new energy storage modules,medical small devices,and toy electronic control components.Compared with unsecured simple connectors,the anti-disengagement snap-fit connector offers a core advantage;it features comprehensive standard 2.54mm pitch specifications,ample stock of conventional 2P to 12P models,moderate costs,and excellent balance between performance and cost-effectiveness.

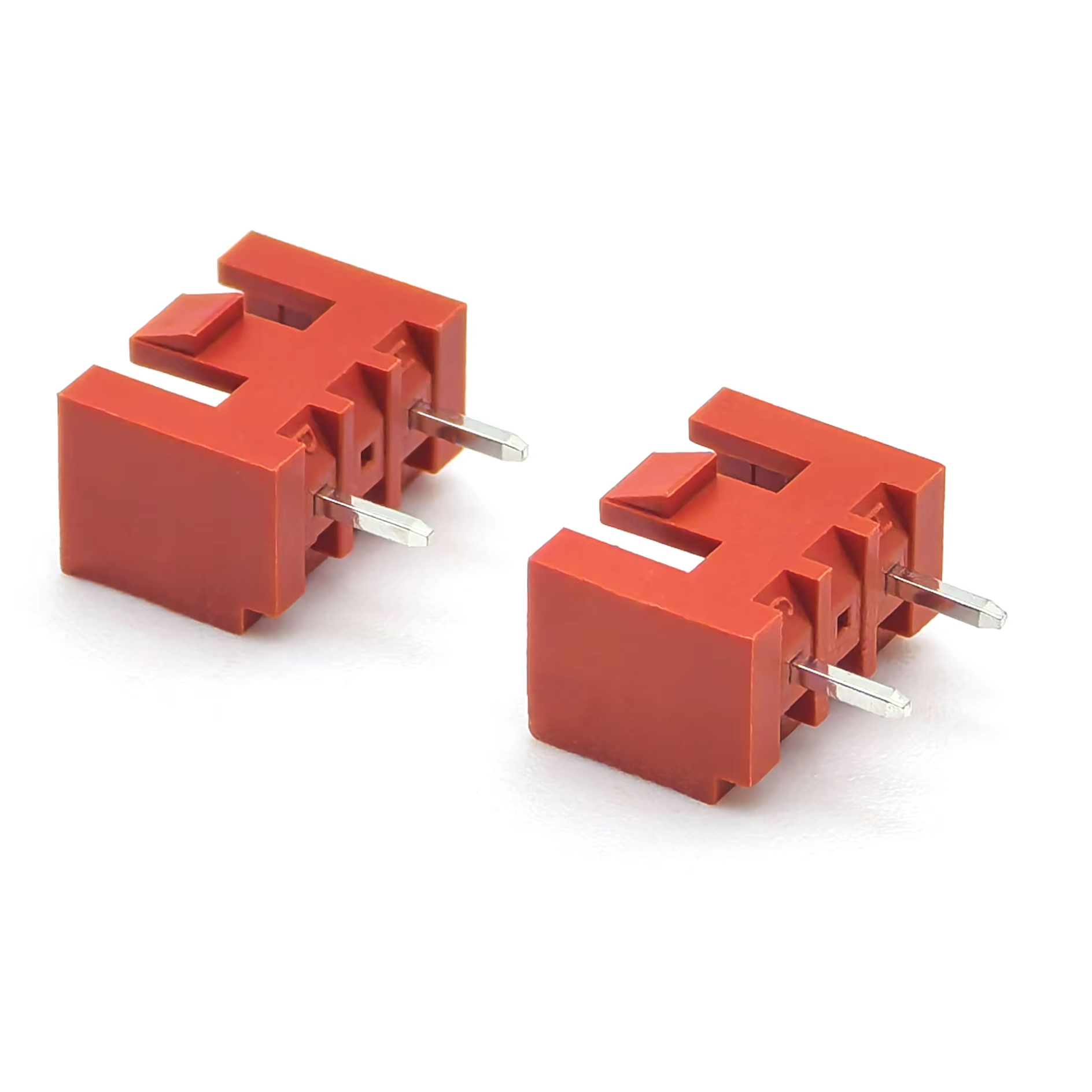

Wafer XH2.5 Pin header Connector With Buckle

This Wafer Housing Terminal has a relatively low rated current and is primarily used in low-voltage weak-signaling and low-power supply scenarios;it is not suitable for high-current power circuits.Thanks to its stable and reliable performance,excellent interchangeability,and straightforward assembly process,the XHB buckle-type through-hole pin header is the preferred solution for PCB connections in small-to-medium-sized electronic products.
